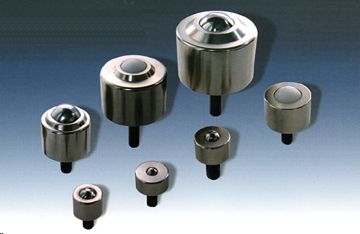

각종 중량물을 이동할 때 적합한 MR형 볼트 Type

• 몸체는 스틸에 니켈도금하여 사용
• 볼은 플라스틱, 스테인레스, 스틸로 만들수 있다.
• Setting하기가 간단하다.
• 절삭가공품이므로, 중하중에도 강도를 유지하며, 정밀하고 튼튼하다.
• 볼트는 탈부착이 가능하다.
단지 MR02BT, MR03BT, MR03B, MR04B, MR04AB, MR05B, MR06B, MR06AB, MR07B, MR07AB, MR08B, MR08AB, MR11B, MR12B, MR12AB, MR16B, MR16BT, MR16AB, MR16ABT, MR20B, MR20BT, MR21B, MR21AB, MR25DB, MR26B, MR26AB, MR30AB, MR38AB는 탈부착이 불가능하다.
• 트레이를 열처리하므로서, 중하중에도 강도를 유지한다.
• BALL TRANSFER 사용하중은 정지하중의 50%이하에서 사용 가능합니다.

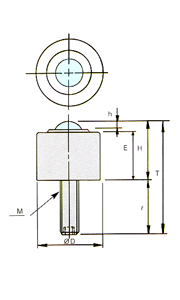

사양 (mm)

품명	볼규격	E	h	ØD	ℓ	T	H	M	自重	靜止荷重
MR02BT	3/16"	4.6	1.4	8.0	2.5	8.5	6.0	M3	0.003kg	10kg
MR03BT	3/16"	5.1	1.4	9.0	3.0	9.5	6.5	M4	0.005kg	13kg
MR03B	3/16"	5.4	1.6	11.5	12.0	19.0	7.0	M6	0.008kg	15kg
MR04B	1/4"	7.5	1.5	12.0	12.0	21.0	9.0	M6	0.01kg	20kg
MR04AB	1/4"	8.5	1.5	12.0	12.0	22.0	10.0	M6	0.012kg	20kg
MR05B	3/16"	7.4	1.6	13.0	15.0	24.0	9.0	M6	0.01kg	20kg
MR06B	1/4"	9.0	2.0	17.0	15.0	26.0	11.0	M6	0.02kg	35kg
MR06AB	1/4"	9.0	2.0	17.0	15.0	26.0	11.0	M8	0.025kg	35kg
MR07B	3/8"	12.5	2.5	15.0	12.0	27.0	15.0	M6	0.02kg	40kg
MR07AB	3/8"	12.5	2.5	15.0	12.0	27.0	15.0	M8	0.025kg	40kg
MR08B	5/16"	12.0	2.0	18.0	18.0	32.0	14.0	M8	0.03kg	50kg
MR08AB	5/16"	12.0	2.0	18.0	12.0	26.0	14.0	M6	0.025kg	50kg
MR10B	3/8"	17	2.5	23.0	20.0	40.0	20.0	M8	0.06kg	70kg
MR11B	1/2"	15.0	3.0	20.0	20.0	37.0	17.0	M8	0.06kg	50kg
MR12B	1/2"	15.0	3.0	20.0	12.0	30.0	18.0	M8	0.04kg	50kg
MR12AB	1/2"	15.0	3.0	20.0	12.0	30.0	18.0	M6	0.035kg	50kg
MR13B	1/2"	21.0	3.5	28.0	23.0	48.0	25.0	M8	0.10kg	80kg
MR16B	5/8"	16.5	4.0	24.0	12.0	32.5	20.5	M6	0.05kg	120kg
MR16BT	5/8"	16.5	4.0	24.0	12.0	32.5	20.5	M6	0.05kg	120kg
MR16AB	5/8"	16.5	4.0	24.0	12.0	32.5	20.5	M8	0.07kg	120kg
MR16ABT	5/8"	16.5	4.0	24.0	12.0	32.5	20.5	M8	0.07kg	120kg
MR16CB	5/8"	19	4.0	25.0	20.0	45.0	25.0	M8	0.08kg	120kg
MR18B	3/4"	23.5	6.0	31.0	20.0	52.5	32.5	M8	0.15kg	140kg
MR18AB	3/4"	29.0	6.0	31.0	25.0	63.0	38.0	M8	0.20kg	150kg
MR19B	3/4"	28.0	5.5	41.0	32.0	67.0	35.0	M8	0.29kg	180kg
MR19AB	3/4"	28.0	5.5	41.0	25.0	55.0	30.0	M8	0.25kg	180kg
MR20B	3/4"	22.0	4.0	32.0	20.0	46.0	26.0	M8	0.13kg	140kg
MR20BT	3/4"	22.0	4.0	32.0	20.0	46.0	26.0	M8	0.13kg	140kg
MR21B	3/4"	21.0	4.5	35.0	26.0	54.0	28.0	M8	0.20kg	140kg
MR21AB	3/4"	19.0	6.0	31.0	26.0	54.0	28.0	M8	0.10kg	140kg
MR22B	7/8"	27.9	6.0	37.0	32.0	69.0	37.0	M8	0.30kg	160kg
MR22AB	7/8"	32.9	6.0	37.0	30.0	72.0	42.0	M8	0.33kg	160kg
MR25AB	1"	30.5	7.5	42.0	20.0	62.0	42.0	M10	0.40kg	200kg
MR25B	1"	35.0	6.0	52.0	40.0	85.0	45.0	M10	0.60kg	260kg
MR25CB	1"	48.0	7.5	45.0	25.0	83.0	58.0	M10	0.60kg	260kg
MR25DB	1"	19.5	7.5	42.0	20.0	51.0	31.0	M10	0.30kg	200kg
MR25FB	1"	27.5	7.5	44.0	20.0	55.0	35.0	M8	0.30kg	200kg
MR25GB	1"	32.5	7.5	44.0	40.0	80.0	40.0	M10	0.45kg	200kg
MR25HB	1"	34.5	7.5	42.0	40.0	86.0	46.0	M10	0.48kg	200kg
MR26B	1"	27.0	7.0	45.0	26.0	62.0	36.0	M10	0.38kg	200kg
MR26AB	1"	24.5	7.5	42.0	26.0	62.0	36.0	M10	0.35kg	200kg
MR30B	1 1/4"	34.4	9.5	53.0	40.0	87.0	47.0	M10	0.70kg	330kg
MR30AB	1 1/4"	26.4	9.5	52.0	20.0	59.0	39.0	M10	0.50kg	330kg
MR30CB	1 1/4"	40.5	9.5	50.0	40.0	90.0	50.0	M10	0.9kg	330kg
MR38B	1 1/2"	47.8	10.0	72.0	45.0	110.0	65.0	M12	1.60kg	400kg
MR38AB	1 1/2"	27.0	12.0	55.0	25.0	71.0	46.0	M12	0.80kg	400kg
MR45B	1 3/4"	44.0	13.0	89.0	43.0	103.0	60.0	M12	2.50kg	450kg
MR51B	2"	49.6	15.0	95.0	45.0	115.0	70.0	M12	3.2kg	500kg
MR76B	3"	90.0	20.0	130.0	38.0	148.0	110.0	M16	9.5kg	1,000kg
